| Summary |
|

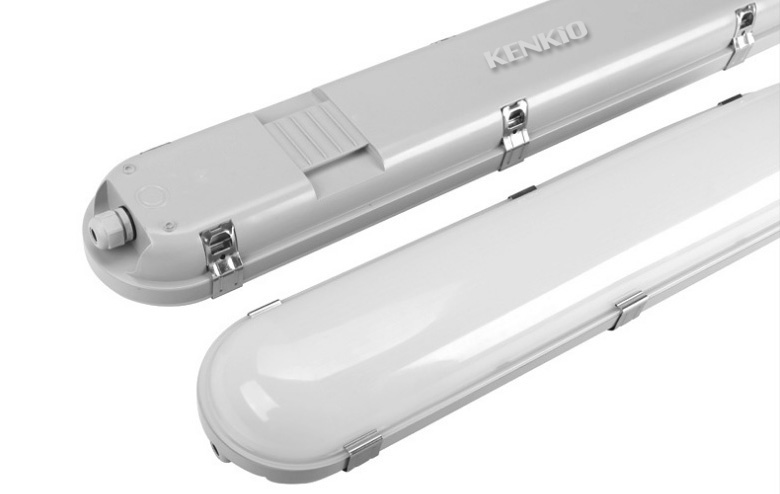

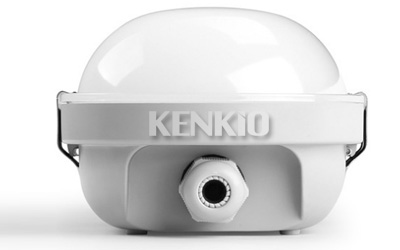

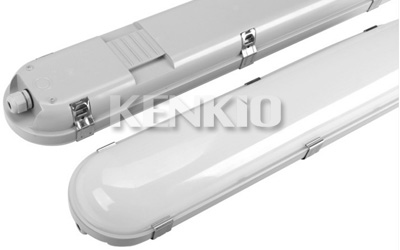

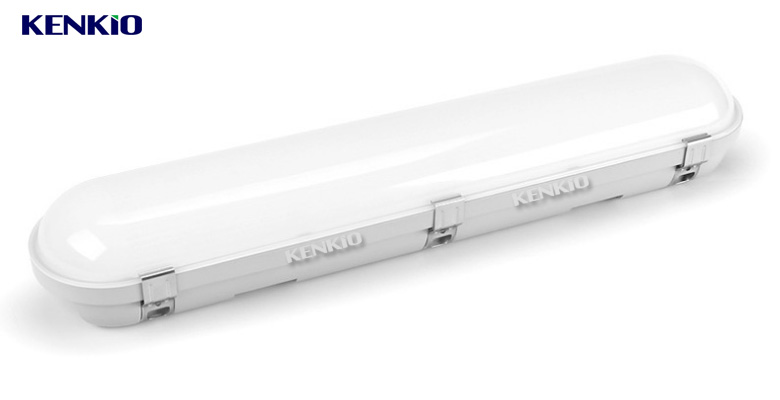

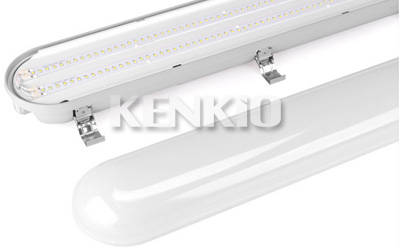

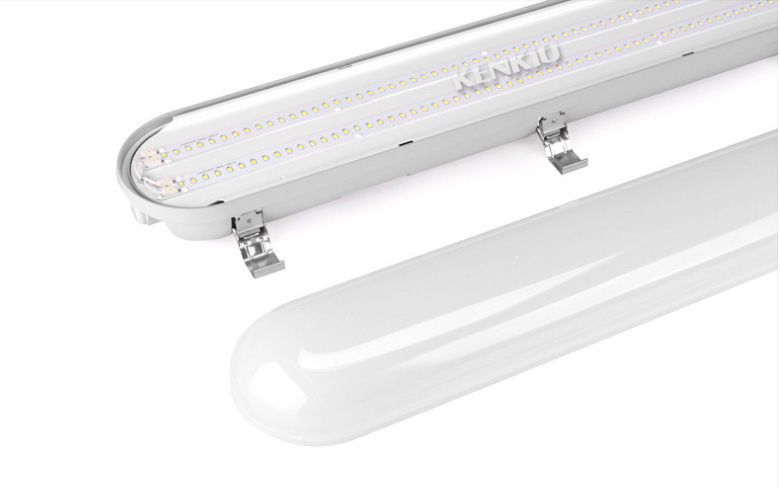

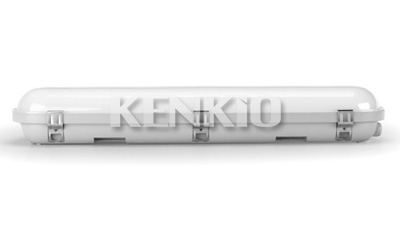

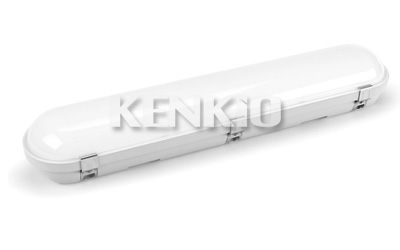

| IP65 Water-Proof ,Dust-Proof, Anticorrosion, Damp-Proof LED Tri-Proof Batten Light with SMD LED Board,High-Efficiency of PC Cover,PC Base, Vapor Tight |
| Back to up |
|
 |
|
| Function |
|
IP65 rated lamp or fitting is water, vapour and dust proof. Integral LED tri-proof battens are also corrosion proof, as there are no metallic components in the casing of the luminaire. Ideal for facilities where steam and dampness are inevitable.
Warehouses with lower ceilings (3-4m) will benefit from these safe and long-lasting luminaires. Emergency and sensor options are available to increase the practicality of this efficient luminaire. Application:Mainly Used for Parkade, Indoor Garage, Parking Lot,Warehouse, Factory, Metro etc
|
| Back to up |
|
|
|
| Specification |
|
Material: PC+PC
Length: 600mm,1200mm,1500mm
Size:600*125*88mm,1200*125*88mm,1500*125*88mm (Width Version)
600*95*80mm,1200*95*80mm,1500*95*80mm (Narrow Version)
Packing:9pcs/Carton

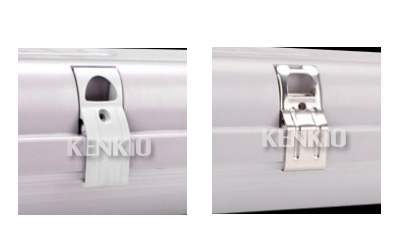

Clamp: Plastic Clamp or Stainless Steel Clamp
Quantity of T8 Tube: Single or Double
|
Item
|
Symbol
|
L=600MM/2FT
|
L=1200MM/4FT
|
L=1500MM/5FT
|
|
Power
|
/
|
20W
|
40W
|
60W
|
|

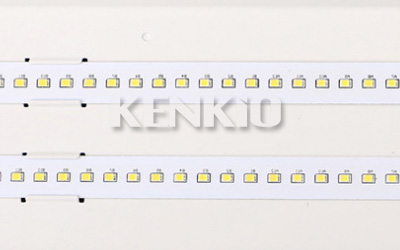

LED Type/Qty
|
SMD2835
|
120
|
240
|
360
|
|
Luminous Flux (LM)
|
Clear
|
2800
|
5600
|
8400
|
|
Milky White
|
2600
|
5200
|
7800
|
|
Power Factor
|
PF
|
>0.9
|
|
Color Temperature
|
TC(K)
|
WW:3000-3500K,NW:4000-4500K,PW:5000-5500K,CW:6000-6500L
|
|
Beam Angle
|
℃
|
120
|
|
Input Voltage
|
V
|
AC100-277V 50/60H
|
|
IP Class
|
IP
|
IP65
|
|
Temperature
|
℃
|
Operation:-20℃-+40℃,Storage:-30℃-+60℃
|
|
Life Time
|
h
|
50000 hours
|
|
Warranty
|
/
|
5 years
|

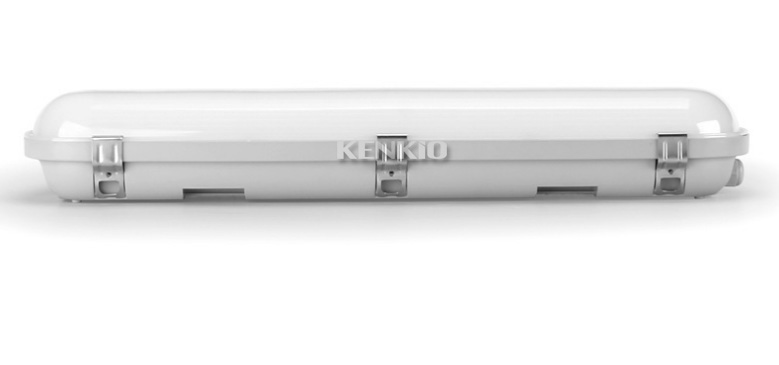

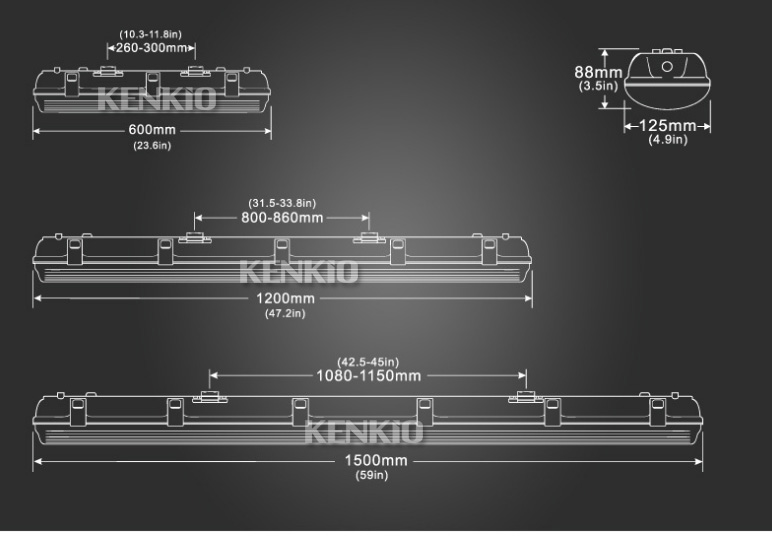

Product Size (Width Version)
|
