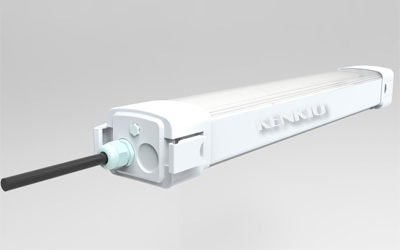

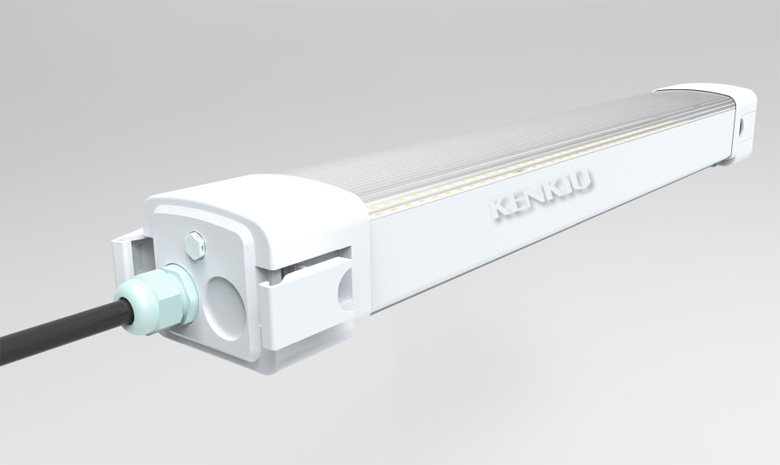

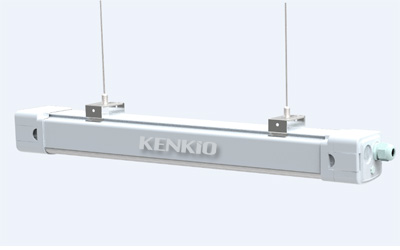

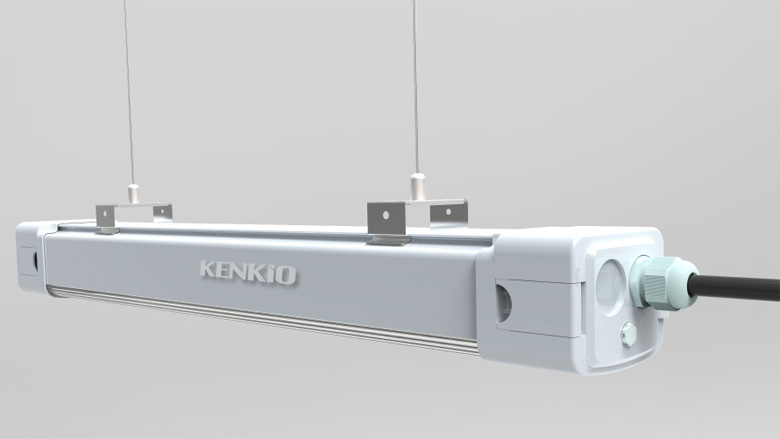

IP65 Tri-Proof Luminaire,Unique Design,Long lifespan,plug and play in connection,self-wiring connection,5.8G Microwave Sensor, 0-10V, DALI,TRIAC dimming,Emergency is optional
|
| Back to up |
|
 |
|
| Function |
|
Application:Mainly Used for Parkade,Parking Lot,Warehouse, Factory,Tunnel, Corridor, Bus Station, Metro etc |
| Back to up |
|
|
|
| Specification |
|
LED Tri-Proof Lamp is eco-friendly and certified by international certificates including CE, RoHS,it is very easy to install and offer you flexible connection options including plug-and-play, and self-wiring connections
|
Item
|
L=600MM/2FT
|
L=900MM/3FT
|
L=1200MM/4FT
|
L=1500MM/5FT
|
|
Power
|
20W
|
30W
|
40W
|
50W
|
50W
|
60W
|
|
LED Type/Qty
|
120
|
168
|
240
|
288
|
288
|
360
|
|
Luminous
Efficiency (LM)
|
130lm/w
|
130lm/w
|
130lm/w
|
130lm/w
|
130lm/w
|
130lm/w
|
|
Power Factor
|
>0.9
|
|
CRI
|
>80
|
|
Brand of LED
Source
|
Philips
|
|
Color
Temperature
|
WW:3000-3500K,NW:4000-4500K,PW:5000-5500K,CW:6000-6500L
|
|
Product Size
|
600*83.4*68.4mm
|
900*83.4*68.4mm
|
1200*83.4*68.4mm
|
1500*83.4*68.4mm
|
|
Input Voltage
|
AC200-265V
50/60H
|
|
Driver
|
Free-Flicker,Isolated
CE Driver
|
|
IP Class
|
IP65
|
|
Temperature
|
Operation:-20℃-+40℃,Storage:-30℃-+60℃
|
|
Life Time
|
50000 hours
|
|
Warranty
|
5 years
|
|
