| Summary |
|

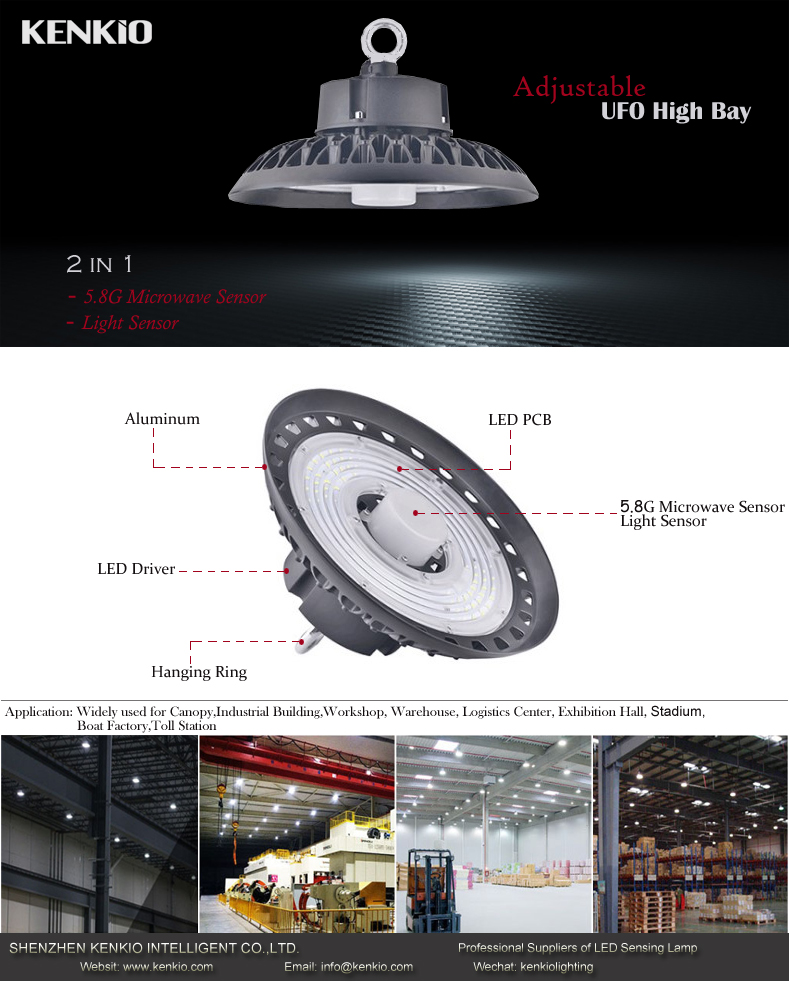

Elligent Design,2 in 1 (5.8G Microwave Sensor & Light Sensor)

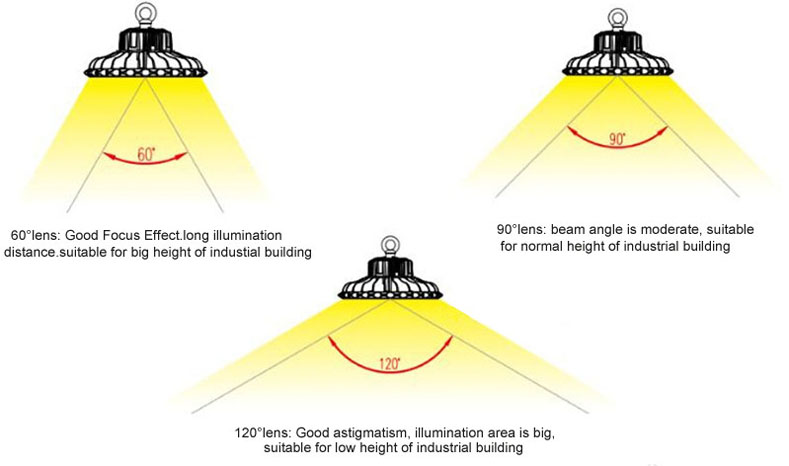

Different Beam Angle:

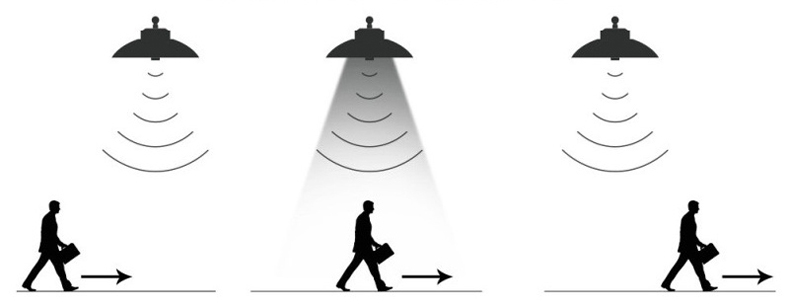

Detecting Situation:

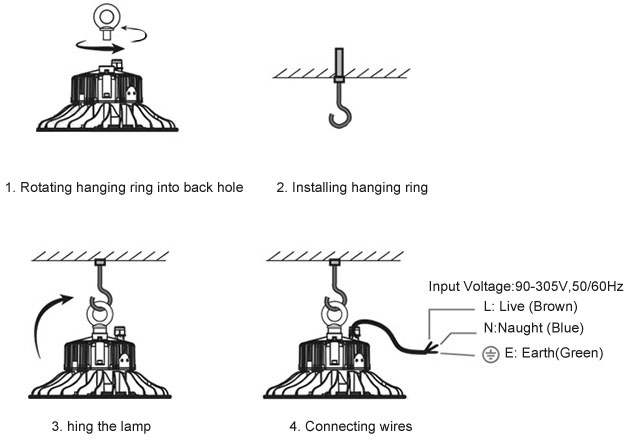

Installion:
|
| Back to up |
|
 |
|
| Function |
|
Application: Widely used for Canopy,Industrial Building,Workshop, Warehouse, Logistics Center, Exhibition Hall, Stadium, Boat Factory,Toll Station,Parking Area etc
|
| Back to up |
|
|
|
| Specification |
|
Material: Aluminum + PC
Power: 100W (150W,200W is optional)
LED Source: SMD 2835
Voltage: AC85-265V
CRI:>80
PF:>0.97
Beam Angle: 60°/90°/120°
Product Size: Ø253*149mm (100W), Ø308*155mm (150W), Ø354*160mm (200W)
Lumious Efficency:165lm/w
With 5.8G Microwave Sensor and with Light Sensor (daylight control) by remote controller
Warranty: 5 years
|
Power
|
Standard
illumination Distance
|
Range of
illumination Distance
|
Beam Angle
|
illumination
Area
|
|
100W
|
8 meters
|
7-9 meters
|
120°
|
70㎡
|
|
150W
|
10 meters
|
9-11 meters
|
120°
|
110㎡
|
|
200W
|
15 meters
|
14-16 meters
|
120°
|
150-200㎡
|
|
