| Summary |
|

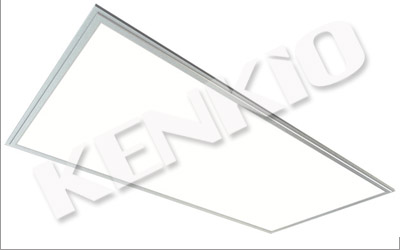

| LED Panel Light - 600*1200mm: Use KENKIO advanced backlight technology, Porfessional heat singking design, Zero glares, soft and uniform design, high efficient energy saving, easy to install |
| Back to up |
|
 |
|
| Function |
|
Powerful function:
- Frame material: oxidated aluminium, enhance the beauty of its appearance, efficient light guide plate, heighten the luminous intensity.
- Illuminant: low power SMD LED.
- Heat dissipation: two sides and back plate.
- Diffuse angle: 85degree.
- Weight: 6KG.
- Life time: >50,000 hours
- Installation: recessed, mounted, suspended
Applications: Commercial Lighting, Hotel lighting, Residental lighting etc |
| Back to up |
|
|
|
| Specification |
|
|
Color
|
Color
Temp (K)
|
Operating Voltage(V)
|
Input Voltage(V)
|
Power
(W)
|
illumination
LX/lm
|
Luminous
flux(Lm)
|
Size
(mm)
|
Size for installation
|
|
CW
|
6000-7000
|
24
|
100-240
|
82
|
600
|
6500
|
598*1198*11.5
|
600*1200
|
|
NW
|
4000-5000
|
24
|
100-240
|
82
|
580
|
6700
|
598*1198*11.5
|
600*1200
|
|
WW
|
2900-3300
|
24
|
100-240
|
82
|
570
|
6700
|
598*1198*11.5
|
600*1200
|
|
